- The cost effective solution for closed mould process
- It is used as core material and infusion medium
- It is a pressure stable polyester non-woven and compatible with all regular types of resins, including Unsaturated Polyester Resin, Vinyl ester, Phenolic and Epoxy
- It is suitable for closed mould processes, including Infusion, RTM Light, RTM Heavy
APPLICATIONS
- Marine: hulls, decks and structures of boats and yachts
- Transportation: parts and panels of cars, trailers, trucks and RV¡¯s
- Mass transit: interior and exterior of trains, light rail and buses
- Leisure: kayaks, surfboards, pools and tubs, Swimming Pool and bathroom
- Industrial: Furniture, cladding panels, fans, containers and tanks
- Wind energy: nacelle covers and spinners
ADVANTAGES
- The product has a diversion groove as a diversion medium;
- No need to use additional diversion materials
- Better compressive performance
- As a choice for low-cost core materials
- Reduce product weight
- Increase product rigidity
- Can make the appearance of the product more beautiful
- Excellent conformal performance
- Excellent impact resistance
- The thickness of the product can be controlled as needed

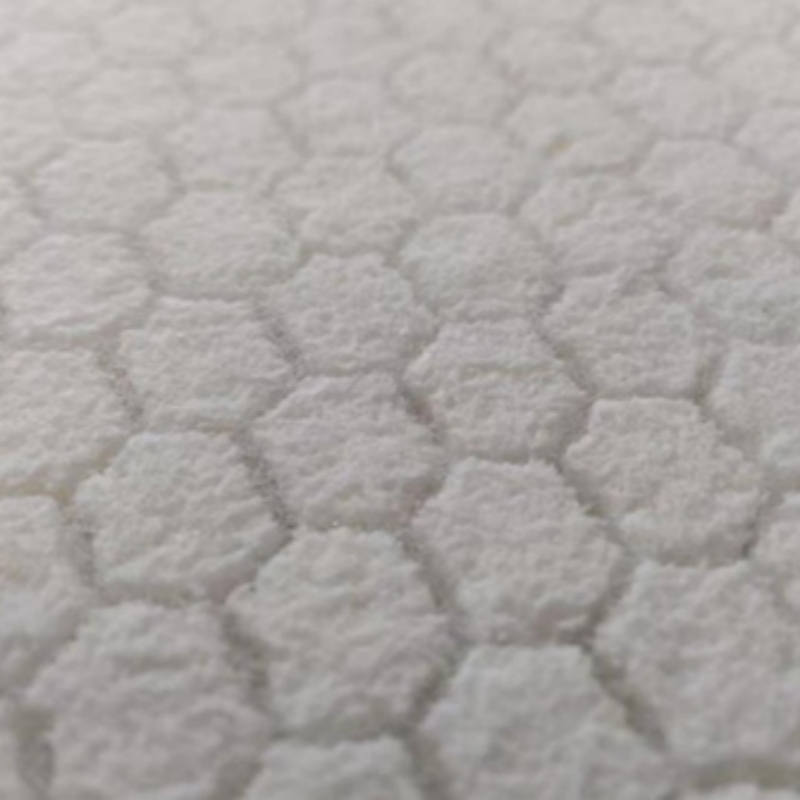

- Max thickness 10mm, hexagonal core with non-absorbing resin, low compression rate (10%@-0.8bar)
- Flow channel 0.5mm, between adjacent hexagons to accelerate resin flow Properties
BASIC PROPERTIES
|
GKC1.5 |
GKC2 |
GKC3 |
GKC4 |
GKC5 |
GKC6 |
|
|
Thickness (mm) |
1.5 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
|
Thickness loss at 0.8bar (%) |
<8 |
<8 |
<8 |
<8 |
<8 |
<8 |
|
Roll length (m) |
80 |
80 |
50 |
40 |
30 |
25 |
|
Roll width (m) |
1.28 |
1.28 |
1.28 |
1.28 |
1.28 |
1.28 |
|
Max processing temperature (¡ãC) |
175 |
175 |
175 |
175 |
175 |
175 |
|
Dry weight (g/m²) |
125 |
140 |
180 |
250 |
330 |
350 |
|
Resin uptake (kg/m²/mm) |
0.4-0.5 |
0.4-0.5 |
0.4-0.5 |
0.4-0.5 |
0.4-0.5 |
0.4-0.5 |
|
Density impregnated (kg/m³) |
500-600 |
500-600 |
500-600 |
500-600 |
500-600 |
500-600 |
